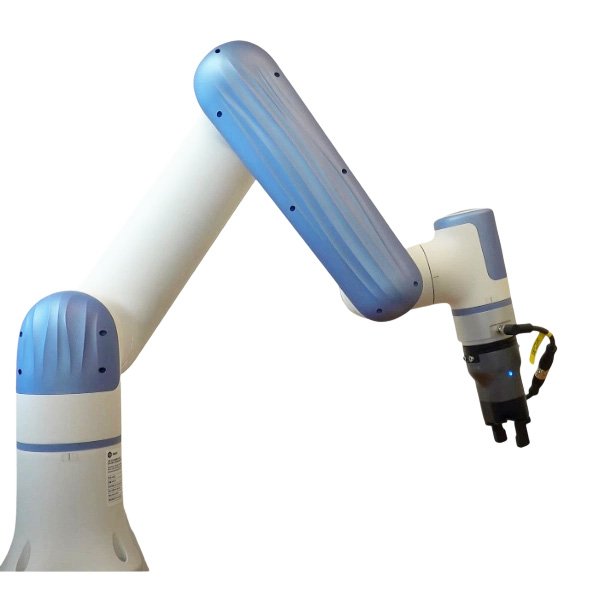

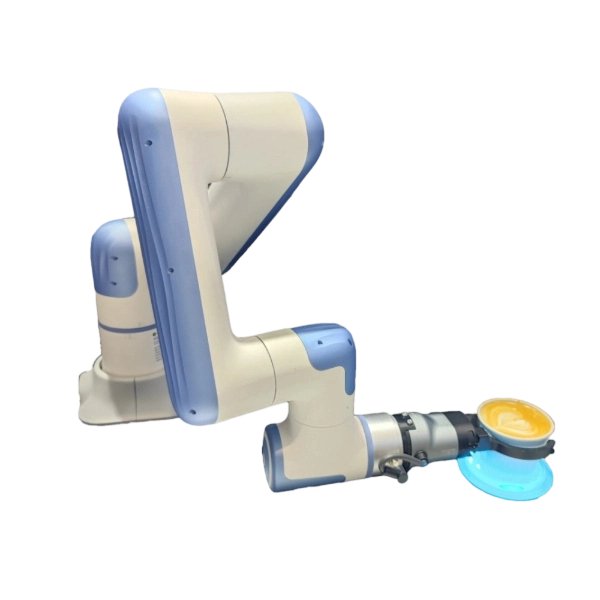

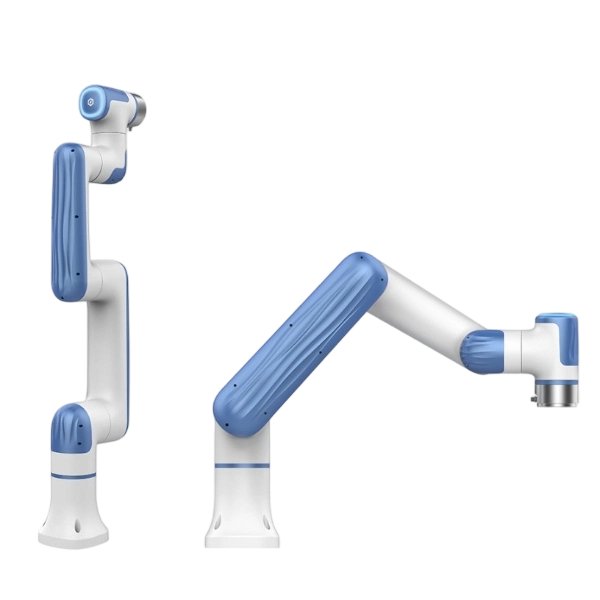

The Nova 2 Entry-Level 6-Axis Collaborative Robot Arm (2 kg / 625 mm) expands the Nova family’s flexible design with greater reach and payload, while retaining intuitive programming and deployment in customer-facing or semi-industrial scenarios. It delivers fast, safe, and accurate operation, perfect for dispensing, assembly, and light handling tasks.
Core Highlights
Flexible 6-Axis Motion
Nova 2 is equipped with six rotary joints for flexible end-effector positioning. J1, J4, J5, and J6 support ±360° motion, while J2 supports ±180° and J3 supports ±156°, enabling multi-directional positioning and orientation adjustment.
625 mm Reach with 2 kg Payload
Nova 2 provides a 2 kg maximum payload, 625 mm working radius, 1.6 m/s maximum TCP speed, and ±0.05 mm repeatability. This configuration is suitable for commercial automation, lightweight material handling, and service-oriented robot applications.
Hand-Guiding Teaching Function
The robot arm is equipped with a hand-guiding button and status indicator at the end. When enabled, users can long-press the end button to enter hand-guiding mode, manually move the arm to a target position, and exit the mode to record or adjust robot motion paths.
Any-Angle Installation
Nova 2 supports installation at any angle, allowing flexible layout on counters, service stations, workbenches, walls, or other equipment structures. Appropriate fixing and anti-fall measures should be applied according to the actual installation environment.
PC and App Control
Nova 2 supports control through PC, Android tablets, and iPad. DobotStudio Pro is used on PC, while Dobot CRStudio is supported on mobile terminals. A wireless receiver must be connected to the CCBOX for Wi-Fi control.
Technical Specifications
Nova 2 Specification | |||
| Weight | 11kg(24.31bs) | ||
| Maximum Payload | 2kg(4.41bs) | ||
| Working Radius | 625 mm(24.6 in) | ||
| Maximum Speed of TCP | 1.6 m/s (63 in/s) | ||
| Repeatability | ±0.05 mm | ||
| Range of Motion | J1 | ±360° | |
| J2 | ± 180° | ||
| J3 | ± 156° | ||
| J4 | ± 360° | ||
| J5 | ±360° | ||
| J6 | ±360° | ||
| Maximum Joint Speed | J1/J2/J3 | 135° /s | |
| J4/J5/J6 | 135°/s | ||
| End I/O | DI/DO | 2 inputs | |
| RS485 | Supported | ||
| IP Rating | IP54 | ||
| Noise | 65 dB(A) | ||
| Temperature Range | 0°to 50°C | ||
| Installation Orientation | Any angle | ||
| Power Consumption | Typical | 100W | |
| Maximum | 250W | ||
| Cable Length from Robot to Controller | 3m(118.1 in) | ||
| Materials | Aluminum alloy,acrylonitrile butadiene Styrene | ||
| Controller | |||
| Dimensions | 200 mmx 120 mmx 55 mm(7.9 inx4.7 inx | ||
| Weight | 1.3kg(2.91bs) | ||
| Input Power | 30~60V DC | ||
| IO Power | 24V,Max 2A,Max 0.5A for each channel | ||
| IO Interface | DI | 8 inputs(NPN or PNP) | |
| DO | 8 inputs(NPN or PNP) | ||
| AI | 2 inputs,voltage mode,0~10V | ||
| AO | 2 outputs,voltage mode,0~10V | ||
| Remote Power On/Off | Supported | ||
| Communication Interface | Network Interface | 2,for TCP/IP and Modbus TCP communication | |
| USB | 2,for connecting USB wireless module | ||
| 485 Interface | 1,for RS485 and Modbus RTU communication | ||
| Environment | Temperature | 0°to 50°C | |
| Humidity | ≤95%,non-condensation | ||
| IP Rating | IP20 | ||
| Cooling Mode | Passive heat dissipation | ||
| Teaching Mode | PC、APP( Android、iOS) | ||
Applicable Industries

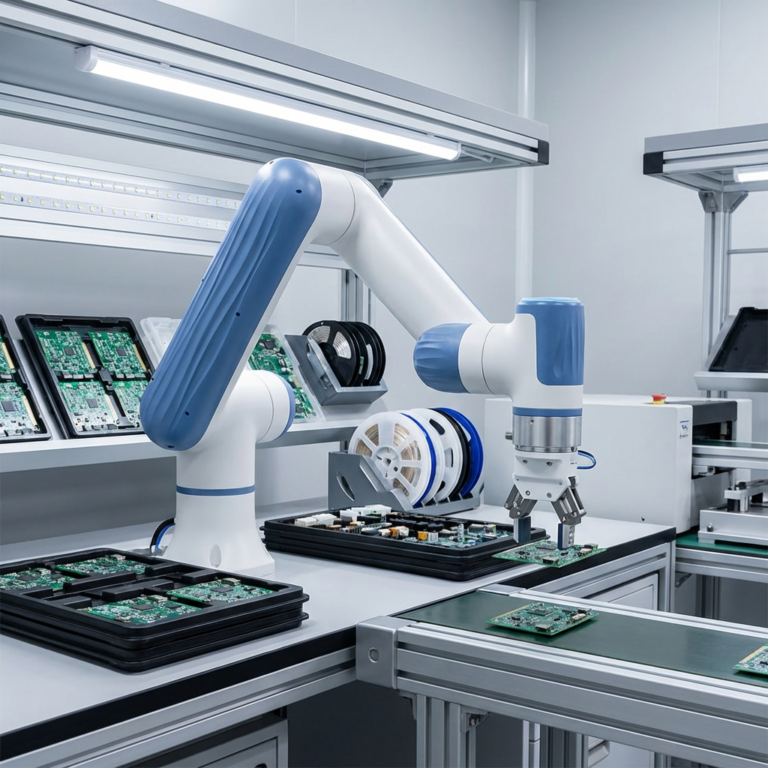

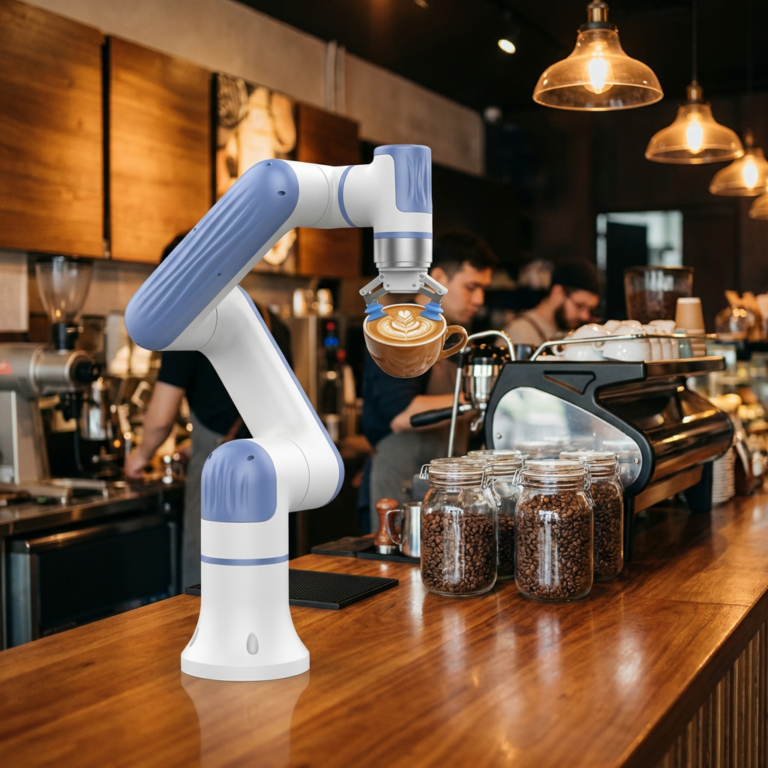

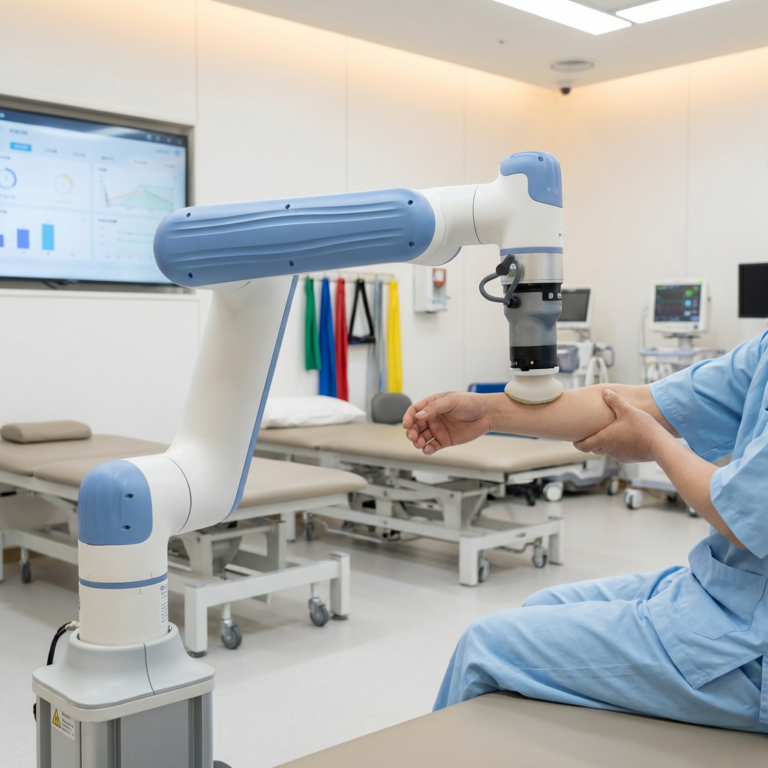

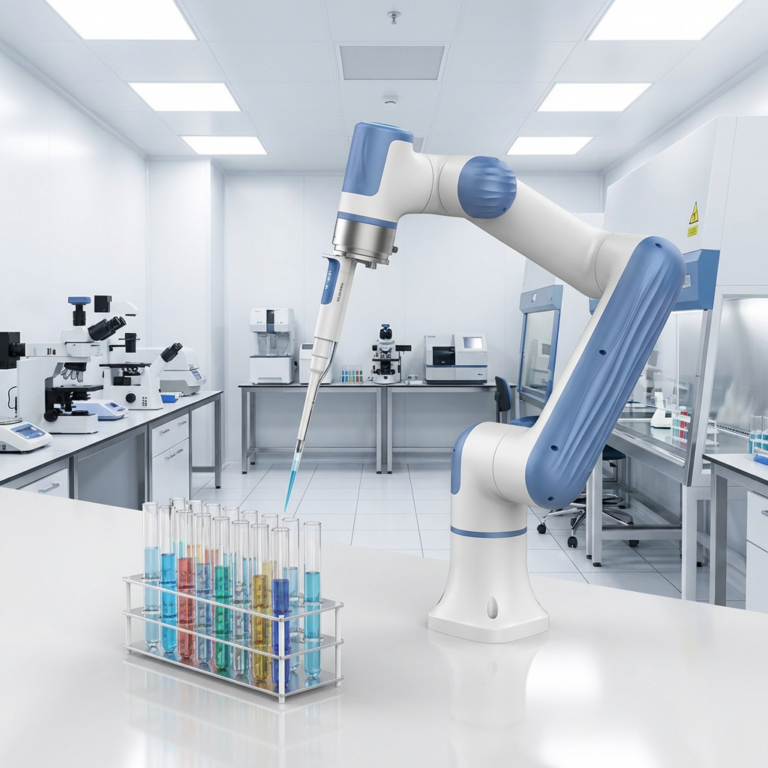

| Coffee shop | Laboratory | Electronics assembly | Medical therapy |
 |  |  |  |

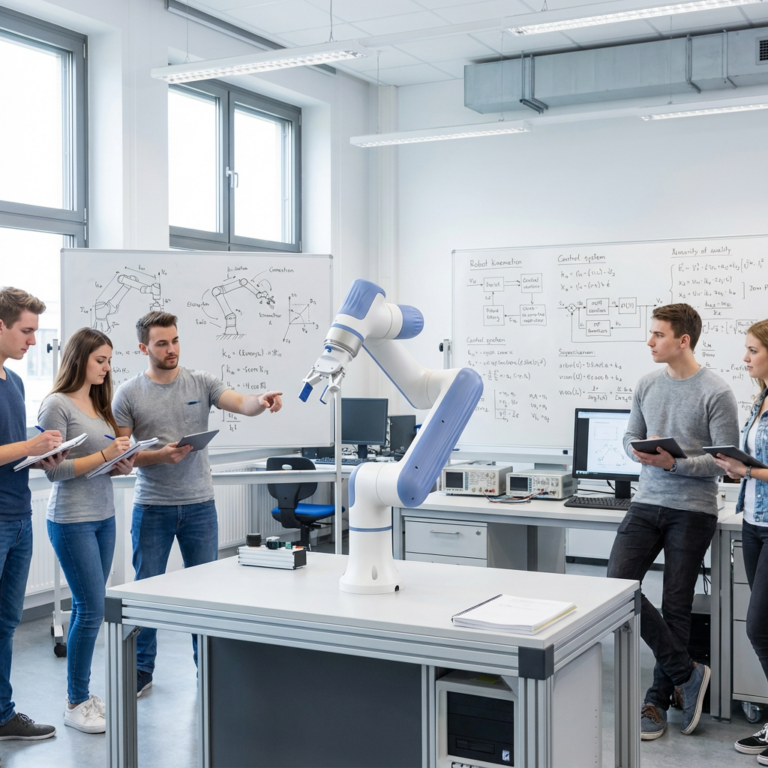

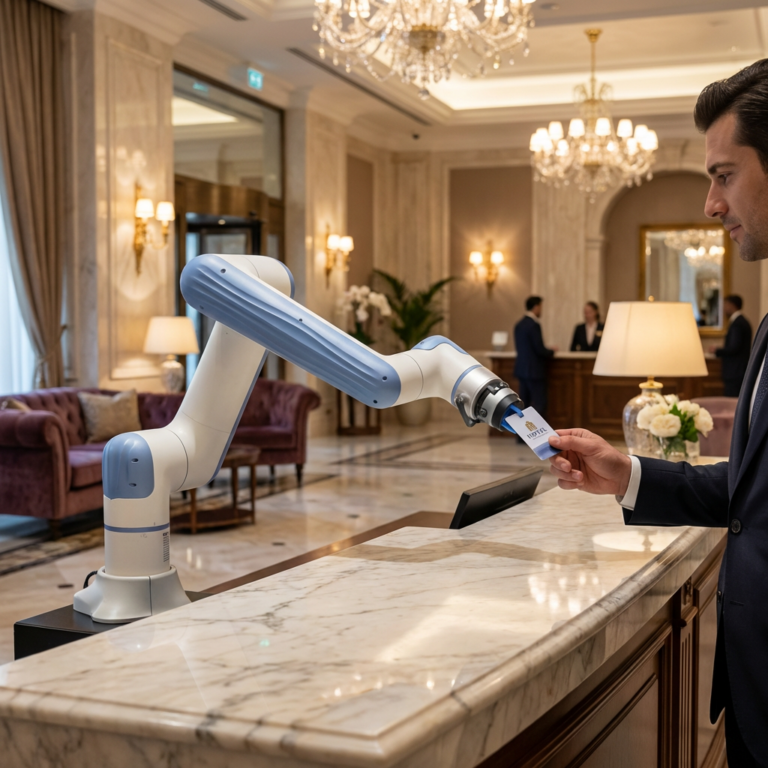

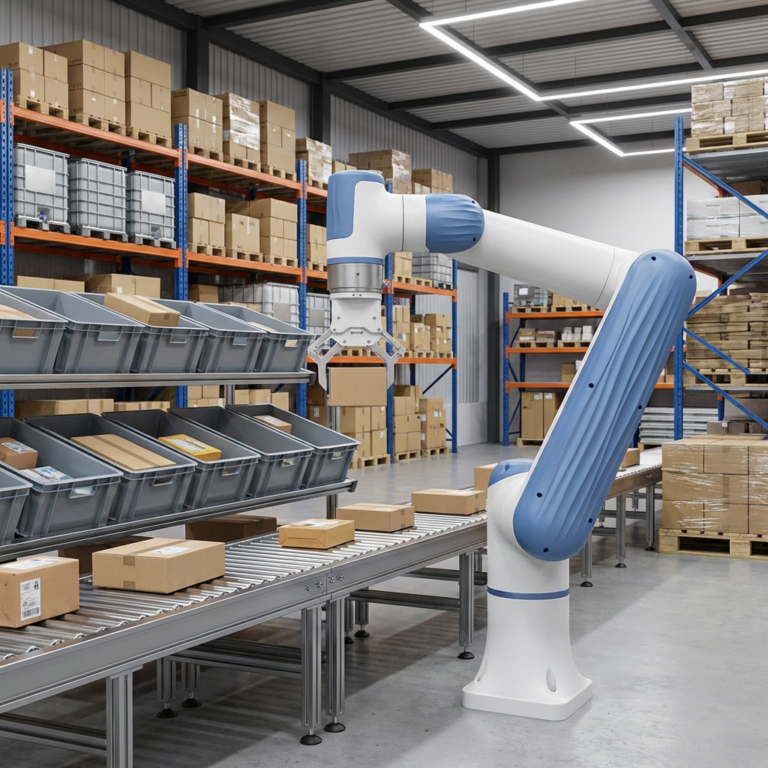

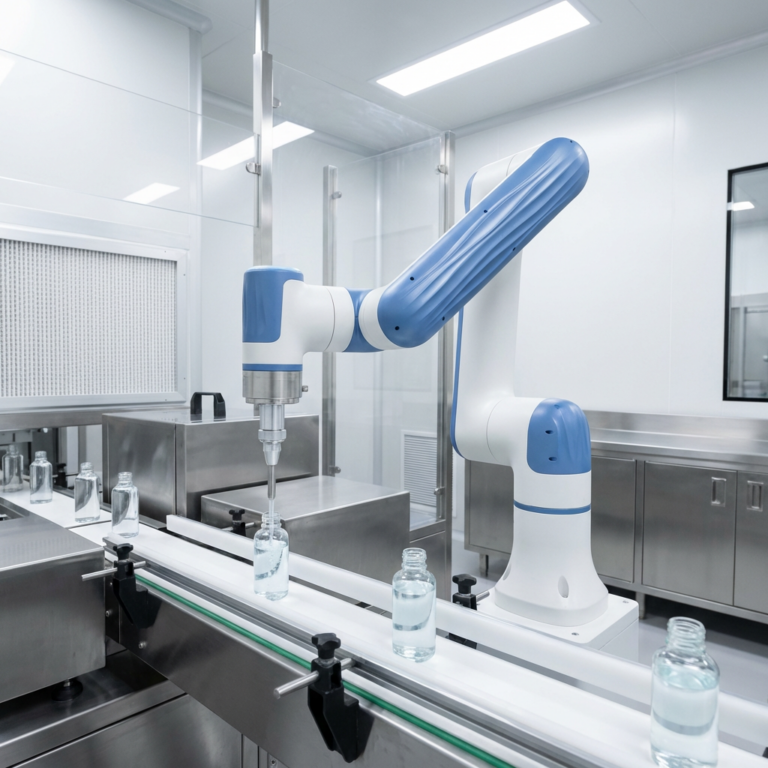

| Education and training | Warehouse picking | Cosmetic filling | Hotel concierge |
 |  |  |  |
FAQ
Q1:Is Nova 2 suitable for retail applications?

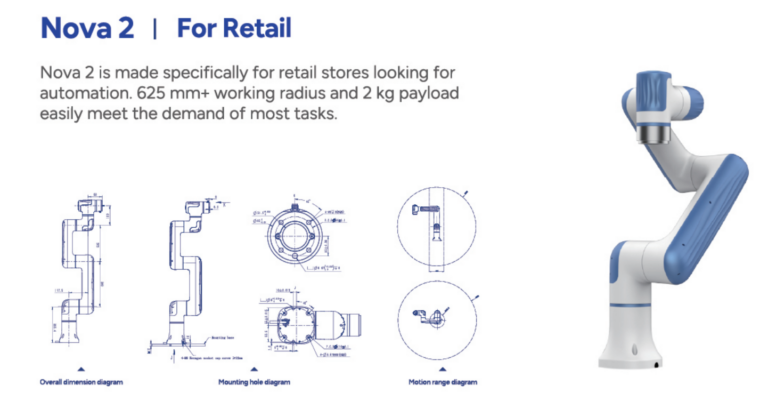

Yes. The supplied website material positions Nova 2 as a collaborative robot for retail store automation and presents application directions including restaurant automation, new retail, healthcare, and education.

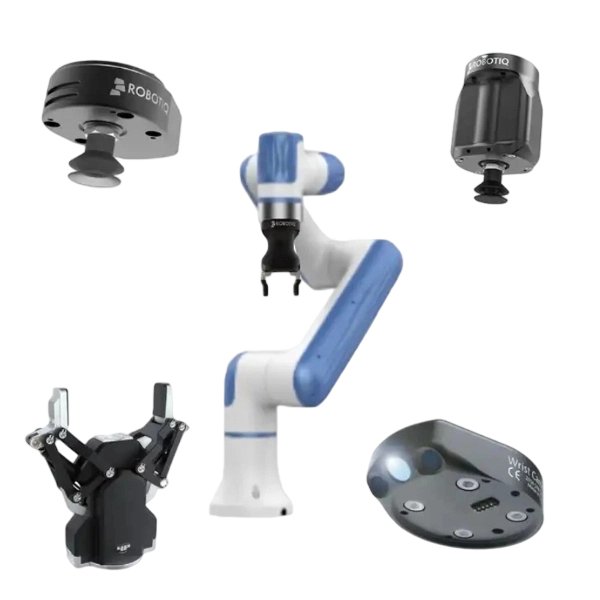

Q2: What end-tool interfaces are available?
The robot end provides 2 digital inputs, 2 digital outputs, 24V output, and RS485 communication for compatible end tools and external devices.
Q3: What control terminals are supported?
Nova 2 supports control through PC, Android tablets, and iPad. DobotStudio Pro is supported on PC, while Dobot CRStudio is supported on mobile terminals.
Q4:What is the repeatability of Nova 2?
Nova 2 provides ±0.05 mm repeatability.
Q5: Does Nova 2 support drag teaching?
Yes. The robot arm has a hand-guiding button at the end. Users can long-press the button to enter hand-guiding mode and record target positions and motion paths.
