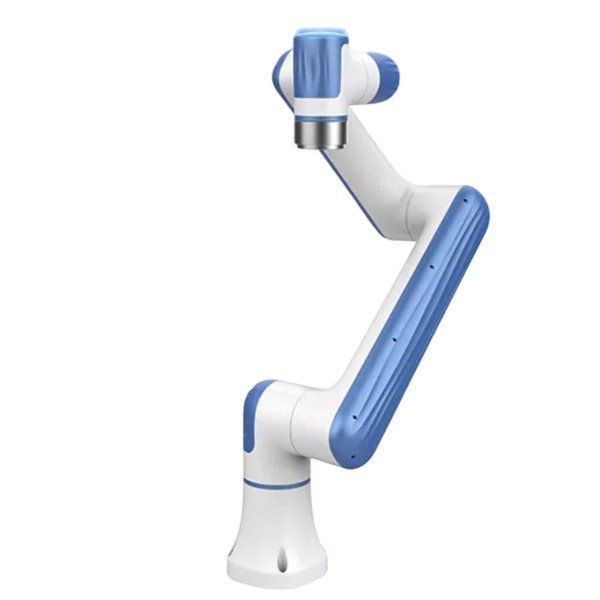

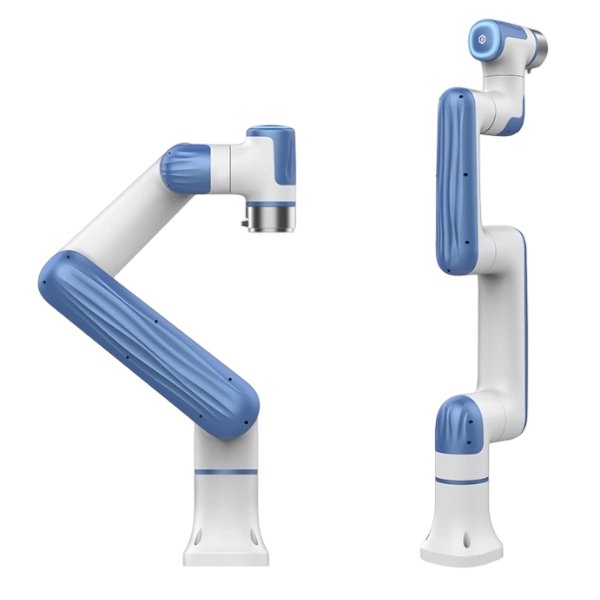

Nova 5

Core Highlights

Flexible 6-Axis Motion

Nova 5 is equipped with six rotary joints. J1, J4, J5, and J6 each provide ±360° motion; J2 provides ±180°; and J3 provides ±160°. This configuration supports multi-directional positioning and complex orientation adjustment.

Hand-Guiding Teaching

The robot arm is equipped with a hand-guiding button and status indicator at the end. When the robot is enabled, users can long-press the end button to enter hand-guiding mode and manually move the robot to target positions for path teaching.

CCBOX Controller and Open Interfaces

Nova 5 works with the CCBOX controller, which provides digital I/O, analog I/O, LAN, USB, and RS485 interfaces for connecting external controllers, sensors, end-effectors, and other automation devices.

±0.05 mm Repeatability

Nova 5 provides ±0.05 mm repeatability and a maximum TCP speed of 2 m/s. Its 6-axis motion structure supports end-effector positioning, movement, and repetitive operation at different orientations.

5 kg Payload with 850 mm Reach

Nova 5 is a 6-axis collaborative robot with a maximum payload of 5 kg and an 850 mm working radius. Its extended reach supports product handling, end-effector operation, and commercial automation tasks across wider workstations.

Technical Specifications

DOBOT Nova 5 Specification
Weight		14 kg (30.9 lbs)
Maximum Payload		5 kg (11 lbs)
Working Radius		850 mm (33.5 in)
Maximum Speed of TCP		2 m/s (78.7 in/s)
Repeatability		±0.05 mm
Range of Motion	J1	± 360°
	J2	± 180°
	J3	± 160°
	J4	± 360°
	J5	± 360°
	J6	± 360°
Maximum Joint Speed	J1/J2/J3	100 ° /s
	J4/J5/J6	100 ° /s
End I/O	DI/DO	2 inputs
	RS485	Supported
IP Rating		IP54
Noise		70 dB(A)
Temperature Range		0° to 50° C
Installation Orientation		Any angle
Power Consumption	Typical	230W
	Maximum	770W
Cable Length from Robot to Controller		3 m (118.1 in)
Materials		Aluminum alloy, acrylonitrile butadiene Styrene
Controller
Dimensions		200 mm x 120 mm x 55 mm ( 7.9 in x 4.7 in x 2.2
Weight		1.3 kg (2.9 lbs)
Input Power		30~60V DC
IO Power		24V, Max 2A, Max 0.5A for each channel
IO Interface	DI	8 inputs（NPN or PNP）
	DO	8 inputs（NPN or PNP）
	AI	2 inputs, voltage mode, 0~ 10V
	AO	2 outputs, voltage mode, 0~ 10V
Remote Power On/Off		Supported
Communication Interface	Network Interface	2, for TCP/IP and Modbus TCP communication
	USB	2, for connecting USB wireless module
	485 Interface	1, for RS485 and Modbus RTU communication
Environment	Temperature	0° to 50° C
	Humidity	≤95%, non-condensation
IP Rating		IP20
Cooling Mode		Passive heat dissipation
Teaching Mode		PC 、APP（Android 、iOS）

Applicable Industries



Coffee shop	Laboratory	Electronics assembly	Medical therapy
Education and training	Warehouse picking	Cosmetic filling	Hotel concierge

FAQ

Q1:What is the repeatability of Nova 5?

Nova 5 provides ±0.05 mm repeatability.

Q2: Does Nova 5 support different installation orientations?

Yes. Nova 5 supports installation at any angle. Wall-mounted, ceiling-mounted, or other special installation positions require appropriate fixing and anti-fall measures.

Q3: What control terminals are supported?

Nova 5 supports PC, Android tablets, and iPad. DobotStudio Pro is available for PC, while Dobot CRStudio is available for mobile terminals.

Q4:What end-tool interfaces are available?

The robot end provides 2 digital inputs, 2 digital outputs, 24V power output, and RS485 communication for compatible end-effectors.

Q5: What is the robot protection rating?

The Nova 5 robot arm has an IP54 protection rating, while the CCBOX controller has an IP20 protection rating.
